Why choose a custom-shaped pond liner?

A custom liner allows the pond liner to fit the shape and features of the pond as optimally as possible. This helps avoid excess material and waste.

Before we dive into the process of designing a custom pond liner, let’s take a look at how a simple, rectangular liner differs from a custom-designed solution.

Custom-shaped pond liner

✓ The lengths of the liner strips can vary
✓ The liner strips can be shifted relative to each other
✓ Reduces costs
✓ Environmentally friendly

Rectangular-shaped pond

✗ Liner strips of equal length
✗ Strips start and end at the same points
✗ Material cannot be optimized
✓ No need for detailed surveying

Custom Pond Liner Design

When manufacturing custom pond liners, we cut liner strips to size and weld them together. It’s similar to trying to follow the shape of the pond basin using shorter and longer rectangles (see image above).

The width of the liner strips is always 3.6 meters (the liner size can be increased in steps of this width). So, one dimension of the liner depends on how many strips are welded together. For example, if 7 liner strips are needed, the final liner width will be 7 × 3.6 m = 25.2 m.

The length of the liner strips varies depending on the shape of the pond basin, and they can also be offset relative to each other to accurately follow the contours of the pond.

The first step in custom pond liner design is an on-site survey, where you need to determine the exact lengths of liner strips required based on the shape of your pond, and how they will fit together.

You must record the data collected during the measurements and enter it into the custom liner design app, which will generate the final blueprint for your order based on your measurements.

To ensure accurate results, you will need the following tools:

Long measuring tape

Use a 30, 50 or 100-meter measuring tape, depending on the size of the pond

Clipboard, Paper, Pen

This will be used to draw the shape of the pond and record your measurements

Spray paint
or a stick

You can mark reference points on the ground with them

At least 2 people

Make sure to have at least one assistant with you during the survey

Overview of the Survey Process

The description below is quite detailed, as it covers many important aspects to ensure the survey is successful.
But don’t worry — the concept is very simple and consists of just three steps:

1. First, mark the spine line along the bottom of the pond

2. Then, mark the positions of the ribs along the spine

3. Finally, measure the length of each rib on both sides of the spine

Marking the Spine Line

This is the first task of the survey.
The process is a bit like drawing a skeleton: first, you mark a spine line, and then you draw the ribs onto it.

There are two ways to define the spine line:

Option A

You can lay the measuring tape parallel to the longest and straightest side of the pond.

The advantage of this method is that it minimizes liner waste due to the shape of the pond, and it makes it easier to measure the rib lengths in the next step. Additionally, during installation, it is much easier to find the correct position for the liner when unfolding it.

The disadvantage is that if the spine line parallel to the straightest side does not touch all points of the basin (i.e., does not cover the longest possible path), then it may be difficult to apply.

Choose this option wherever possible.

Option B

You can lay the measuring tape by connecting the two most distant points of the pond.

The advantage of this method (which solves the disadvantage of the previous one) is that the spine can run through the entire basin, and rib measurements can be taken on both sides.

The disadvantage is that both edges of the liner will follow the shape of the basin in a stepped manner, which requires slightly more material. It is also a bit harder to find the correct position for the liner during installation, and the exact size is harder to estimate not only on one side, but on both sides of the spine. This is because in this case, the ribs will not be perpendicular to the outline of the basin anywhere, so it is recommended to plan with a small surplus for each measurement to ensure the liner is not smaller than needed (see later).

Important:
The spine line must follow the full topography of the basin, meaning the measuring tape should be laid along a line that passes through both the deepest and highest points of the pond.

The beginning and end of the measuring tape should extend beyond the pond basin, not just from one edge to the other. The amount of overhang will correspond to the extra material needed for securing the liner. So make sure both ends of the tape extend equally, based on the amount of securing allowance you plan for. You should allow at least 100 cm of extra length, but depending on the securing method and soil type, this can be up to 180 cm.

Tip

The spine line will be parallel to the selected side if you determine two points by measuring equal distances from the edge of that side toward the center of the basin.

Mark the spine line using the measuring tape by connecting these two points. In this case, the measuring tape should pass through both points.

The spine line is always straight, while the shape of the pond may not be. If there is a significant difference between the two, try marking the spine line along a different path.

Marking the rib positions

The next task is to mark lines that are perpendicular to the spine line. These lines are the ribs.

Let the beginning of the measuring tape (0 m), which represents the spine line, extend beyond the edge of the pond by the amount needed for securing. The very beginning of the tape (0 m) marks the planned edge of the liner, meaning that at the pond’s edge, the tape will show the securing allowance (about 100–180 cm).

The ribs must be marked along this spine line. The first rib should be marked at 3.6 meters on the measuring tape.

So:

• The 0 m point (the very beginning of the tape) is placed outside the basin.
• At the edge of the pond, the value shown on the tape corresponds to the securing allowance (e.g. 1.3 m).
• The first rib is marked at 3.6 m, the second at 7.2 m, the third at 10.8 m, then 14.4 m, and so on, in increments of 3.6 m.

Important:
You do not need to mark the start and end points of the measuring tape, as they fall outside the basin.

Tip:
It will be helpful later if you paint markings that are at least 50 cm long, and it is important that these markings are perpendicular to the spine line.

The markings should be straight lines. After removing the measuring tape that represents the spine line, the gap between the markings on both sides will show where the spine line was previously located. If you have two measuring tapes, the process is easier, but the markings are still necessary. It may also happen that the spine line shifts for some reason — markings made in the way described above will help you continue the measurements even in such cases.

Measuring the rib lengths

You need to measure the length of each rib at every point you previously marked (on both sides of the spine line — first on the right side, then on the left side). Do it as follows:

1. Take out your paper and pen and make a sketch to make the process easier. Draw a straight line roughly in the middle of the page — this will be the spine line.
2. Draw as many perpendicular lines (ribs) to the spine line as you previously marked. Start drawing each rib from the spine line and end at the edge of the pond basin. Measure the length of each rib and record your measurements on the sketch.

Important:
During rib measurements, the measuring tape must also follow the terrain of the pond basin. The tape should not be wrinkled, but you don’t need to stretch it perfectly tight either. The liner sheet will also be placed into the basin with small waves and folds.

You can measure up to the very edge of the basin without any extra allowance, but in that case, you must later add the securing allowance or other extras by calculation. If you already know exactly where the edge of the liner will be (for example, if the anchoring trench has already been dug), then include that in the rib length during measurement. If the anchoring trench is not yet in place, then let the tape extend beyond the edge by the expected securing allowance, and record the resulting value.

Tip:
If you write the measured rib lengths directly onto each rib on both sides (e.g. 1A = 3 m, 1B = 4 m), you won’t confuse which value belongs where.

If you only have one measuring tape, and you want to determine the ribs perpendicular to the spine line, you can replace the tape previously used for marking the spine with a longer string, rope, or even a garden hose. Then you can use the freed-up measuring tape to mark the perpendicular ribs. Of course, if you have two measuring tapes, the first one can remain fixed on the spine line.

When it’s worth planning with slightly longer liner dimensions

Here are some tips to keep in mind to make sure the liner is never smaller than needed.

Sometimes it’s necessary to plan with slightly more than the measured lengths because the liner sheet is a flat, spread-out material. First, it has to line a three-dimensional shape with depth. Second, the liner is made from a single piece, so different parts of the basin interact with each other — a section that requires more material can reduce the available liner size from multiple directions.

Compared to the survey, the liner sheet will not settle into the pond basin in a perfectly predictable way, so it’s better to plan with safety margins to avoid unpleasant surprises.

If there is a peninsula or similar protrusion in the basin

In this case, the basin will require some extra material from the direction of the spine line, because the liner must curve up onto the peninsula.

It’s recommended to position the spine line so that the tape curves onto the peninsula while still remaining straight. This way, it covers a longer path, meaning the tape will show a higher value along the spine line.

Additionally, folds will form at the base of the peninsula when placing the liner sheet, so extra material must be provided from above, from the edge of the basin. For a peninsula, add 40–70 cm of extra length to each rib that runs through the peninsula or the protruding section of the basin.

Also, add 40–70 cm to one rib before and one rib after the affected area (neighboring ribs).

If the rib’s measuring tape line ends at a curved shoreline

In this case, the less of a right angle the measuring tape forms with the shoreline, the more liner material will be needed for securing.

Additionally, there is some measurement inaccuracy in the direction of the rib: on such curved sections, the tape can show very different values depending on whether the person reading it shifts slightly to the right or left.

Because of this, for curved shorelines, depending on the curvature and the securing method, add 0.5 to 1.2 meters of extra length to the affected ribs.

To help estimate the amount of extra material needed, always include the securing allowance in the rib length during measurement. It also helps to test how much the tape measurement changes when placed in slightly different positions.

Planning with more material is always safer than risking a shortage during installation just to save a few square meters.

Here is the translation without any formatting:

If the length of two consecutive ribs differs significantly, add a small extra length to the shorter rib: if the difference is over 1 meter, add 0.3 meters; if over 1.5 meters, add 0.5 meters; if over 2 meters, add 0.8 meters.

In case of significant difference, the discrepancy should only be considered on either side A or side B relative to the spine line. Do not add the measurements of sides A and B together.

If the shape of the riverbed is very angular or its deepening is more like steps, increase the length of each rib by 30 to 50 centimeters.

If measurements can only be taken on one side of the spine line, only that side should be considered.

You should only apply the instructions described here if the shape of the lake “bends” and measurements can only be taken on one side of the spine line. In such cases, the required measurement may start farther from the spine line.

If this does not apply to your riverbed, scroll straight to the bottom of the page to view our guidelines for planning and installation.

In this case, the steps are as follows:

You can only measure the rib in one direction from the spine line.
Lay the measuring tape along the rib as usual, then measure the distance between the spine line and the edge of the lakebed that is closer to the spine.

Record this distance on the drawing with a negative sign on the empty side of the spine line (where no ribs need to be measured because there is no lakebed on that side).

The negative value will indicate how far this measurement needs to be shifted relative to the spine.

2. Measure the distance between the two edges of the lake — this will be the length of the rib.

3. Add the extra length for fastening and other material allowances to the end of the rib that is farther from the spine line, either for securing or due to the shape of the lakebed.

4. Add the necessary extra material allowance to the beginning of the rib that is closer to the spine line, in a way that increases the rib length toward the spine, either for fastening or due to the shape of the lakebed.

Important:
Adding the extra length will result in a change to the negative value.

For example, if the negative value was -3.0 meters and you add 1.8 meters of extra material, the negative value changes to -1.2 meters.

This means the rib moves closer to the spine line.

It may also happen that so much extra material needs to be added to the rib that the negative value becomes positive.

In this case, a positive number will appear on both sides of the spine line.
For example, if the value is -3.0 meters and you need to add 1.8 + 2.4 meters (where 1.8 meters is for fastening and 2.4 meters is due to the shape of the lakebed), then the rib will be -3 + 1.8 + 2.4 = 1.2 meters in one direction.

If a positive number appears on the other side of the rib due to the negative value turning positive, then no additional material needs to be added to that side.

Tip:
The spine line is always straight, while the shape of the lake may “bend” away from it. If the difference between the two is large, try marking the spine line along a different path. In that case, start the measurements from the beginning.

From this point on, you’ll only need the recorded values and the pond liner designer at lotusgarden.eu to have your liner layout ready in just a few minutes!

The post Measurement of a custom-shaped pond first appeared on Lotus Garden.

The rectangular-shaped pond liner is recommended specifically for building ponds with simple shapes. It can be an ideal choice for contractors, as it can be manufactured in one piece up to 5000 m², but it’s also a suitable option for those building their own garden pond.

All ponds with simple shapes are made using rectangular pond liners

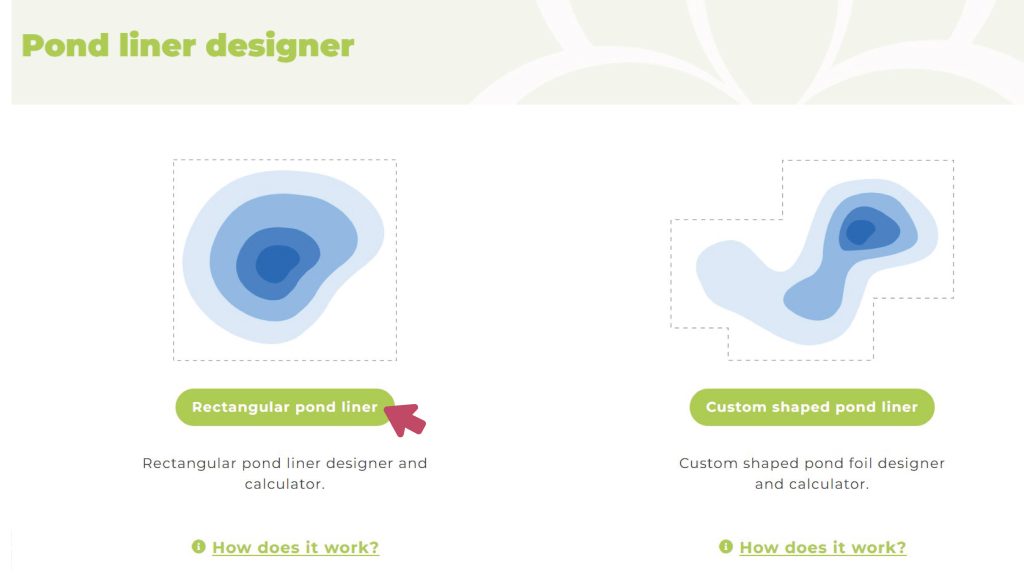

Designing a rectangular pond liner

During the production of a rectangular-shaped pond liner, foil strips are cut to size and welded together.

The width of each foil strip is always 3.6 meters (the liner size increases in steps of this width). So one dimension of the liner depends on how many foil strips are welded together. For example, if 7 foil strips are needed, the final liner width will be 7 × 3.6 m = 25.2 meters.

The length of the foil strips depends on the size of the pond.

The first step in designing a rectangular pond liner is the on-site survey, where you need to determine the exact length of foil strips required based on the size of your pond.

You must record the data measured during the survey and enter it into the rectangular liner planner calculator, which will generate the calculation for your order based on your measurements.

To get accurate results, you will need the following tools

The surveying process

The survey is very simple and consists of only two steps!

Important:
The measurement should follow the full topography of the basin, so the tape measure must be laid along the line that passes through both the deepest and highest points of the basin.

Both ends of the measuring tape should extend beyond the pond basin, not just from one edge of the pond to the other. The amount of overhang will match the extra length needed for securing. So let both ends of the tape hang out evenly, according to the amount of securing allowance you plan for. Count on at least 50 cm of extra length, but depending on the securing method and soil type, it may need to be more.

Select the longest measurements and use those in the planner. This is important to ensure that every part of the basin will be covered with enough pond liner.

You’re done with the rectangular pond liner survey!

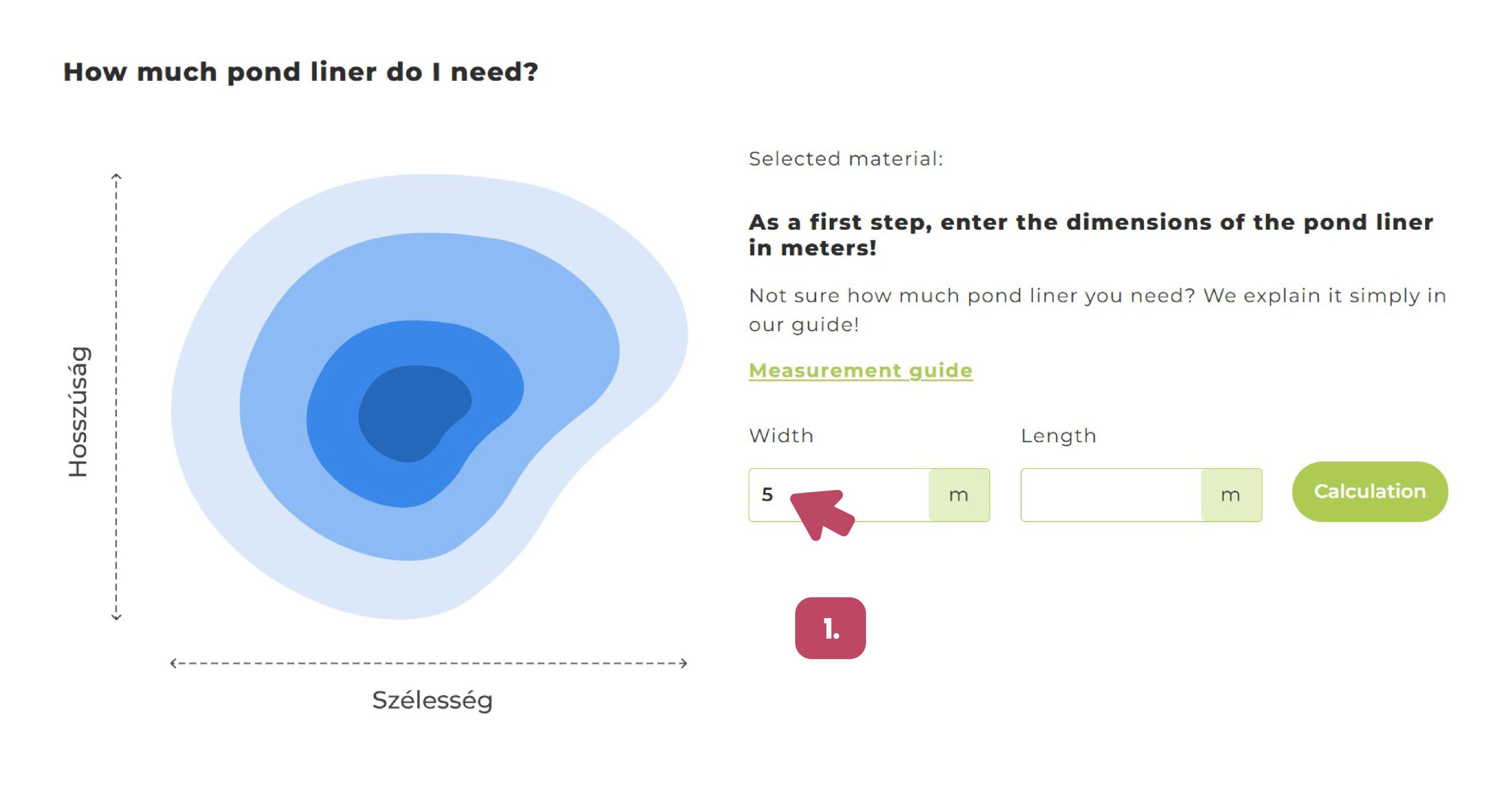

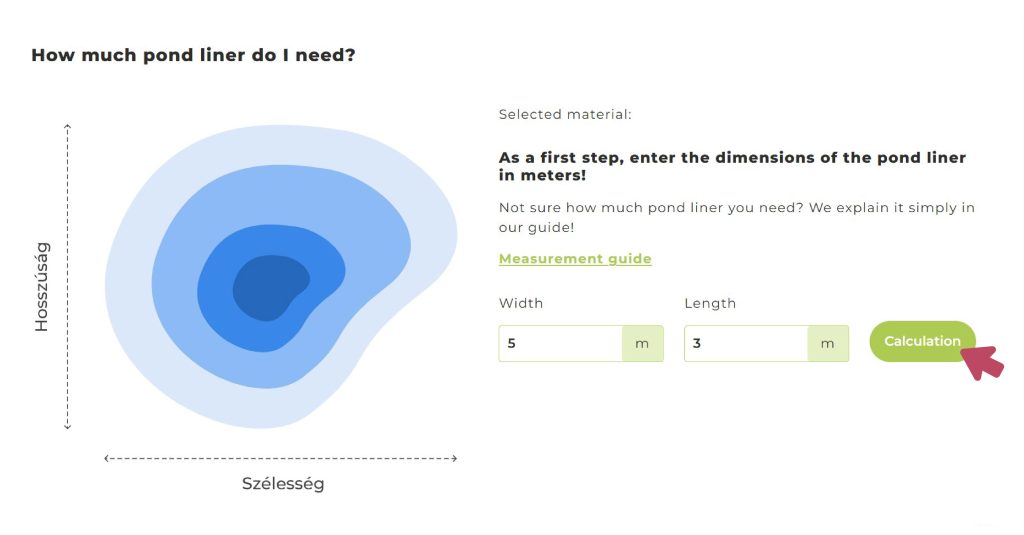

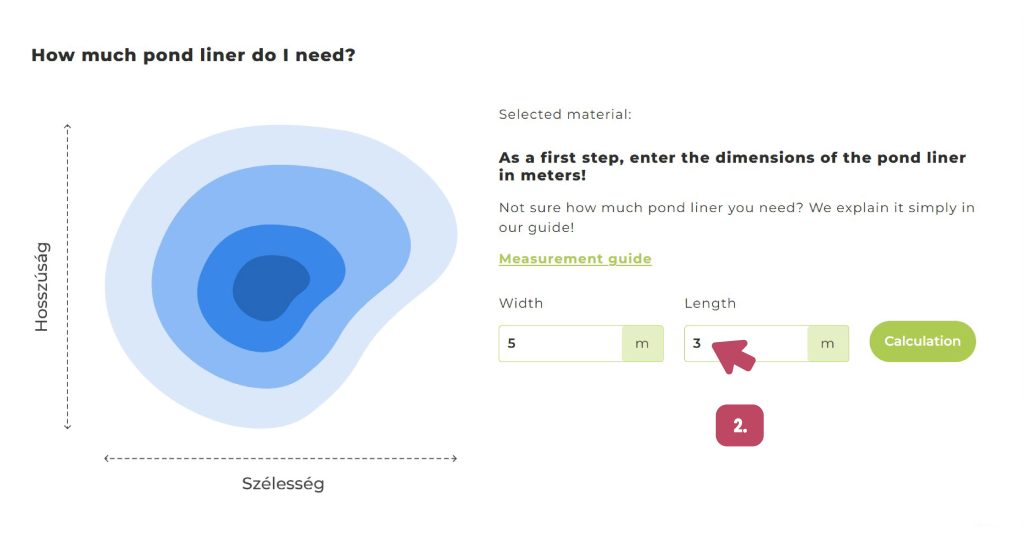

Now you just need to enter the measurements into the designer.

The post Measurement of a rectengular-shaped pond first appeared on Lotus Garden.

Why choose a custom-shaped geotextile?

A custom liner allows the geotextile to fit the shape and features of the pond as optimally as possible. This helps avoid excess material and waste.

Before we dive into the process of designing a custom geotextile, let’s take a look at how a simple, rectangular liner differs from a custom-designed solution.

Custom-shaped geotextile

✓ The lengths of the liner strips can vary
✓ The liner strips can be shifted relative to each other
✓ Reduces costs
✓ Environmentally friendly

Rectangular-shaped geotextile

✗ Liner strips of equal length
✗ Strips start and end at the same points
✗ Material cannot be optimized
✓ No need for detailed surveying

Custom geotextile Design

When manufacturing custom geotextile, we cut liner strips to size and weld them together. It’s similar to trying to follow the shape of the pond basin using shorter and longer rectangles (see image above).

The width of the liner strips is always 5.3 meters (the liner size can be increased in steps of this width). So, one dimension of the liner depends on how many strips are welded together. For example, if 7 liner strips are needed, the final liner width will be 7 × 5.3 m = 37.1 m.

The length of the liner strips varies depending on the shape of the pond basin, and they can also be offset relative to each other to accurately follow the contours of the pond.

The first step in custom geotextile design is an on-site survey, where you need to determine the exact lengths of liner strips required based on the shape of your pond, and how they will fit together.

You must record the data collected during the measurements and enter it into the custom liner design app, which will generate the final blueprint for your order based on your measurements.

To ensure accurate results, you will need the following tools:

Long measuring tape

Use a 30, 50 or 100-meter measuring tape, depending on the size of the pond

Clipboard, Paper, Pen

This will be used to draw the shape of the pond and record your measurements

Spray paint
or a stick

You can mark reference points on the ground with them

At least 2 people

Make sure to have at least one assistant with you during the survey

Overview of the Survey Process

The description below is quite detailed, as it covers many important aspects to ensure the survey is successful.
But don’t worry — the concept is very simple and consists of just three steps:

1. First, mark the spine line along the bottom of the pond

2. Then, mark the positions of the ribs along the spine

3. Finally, measure the length of each rib on both sides of the spine

Marking the Spine Line

This is the first task of the survey.
The process is a bit like drawing a skeleton: first, you mark a spine line, and then you draw the ribs onto it.

There are two ways to define the spine line:

Option A

You can lay the measuring tape parallel to the longest and straightest side of the pond.

The advantage of this method is that it minimizes liner waste due to the shape of the pond, and it makes it easier to measure the rib lengths in the next step. Additionally, during installation, it is much easier to find the correct position for the liner when unfolding it.

The disadvantage is that if the spine line parallel to the straightest side does not touch all points of the basin (i.e., does not cover the longest possible path), then it may be difficult to apply.

Choose this option wherever possible.

Option B

You can lay the measuring tape by connecting the two most distant points of the pond.

The advantage of this method (which solves the disadvantage of the previous one) is that the spine can run through the entire basin, and rib measurements can be taken on both sides.

The disadvantage is that both edges of the liner will follow the shape of the basin in a stepped manner, which requires slightly more material. It is also a bit harder to find the correct position for the liner during installation, and the exact size is harder to estimate not only on one side, but on both sides of the spine. This is because in this case, the ribs will not be perpendicular to the outline of the basin anywhere, so it is recommended to plan with a small surplus for each measurement to ensure the liner is not smaller than needed (see later).

Important:
The spine line must follow the full topography of the basin, meaning the measuring tape should be laid along a line that passes through both the deepest and highest points of the pond.

The beginning and end of the measuring tape should extend beyond the pond basin, not just from one edge to the other. The amount of overhang will correspond to the extra material needed for securing the liner. So make sure both ends of the tape extend equally, based on the amount of securing allowance you plan for. You should allow at least 100 cm of extra length, but depending on the securing method and soil type, this can be up to 180 cm.

Tip

The spine line will be parallel to the selected side if you determine two points by measuring equal distances from the edge of that side toward the center of the basin.

Mark the spine line using the measuring tape by connecting these two points. In this case, the measuring tape should pass through both points.

The spine line is always straight, while the shape of the pond may not be. If there is a significant difference between the two, try marking the spine line along a different path.

Marking the rib positions

The next task is to mark lines that are perpendicular to the spine line. These lines are the ribs.

Let the beginning of the measuring tape (0 m), which represents the spine line, extend beyond the edge of the pond by the amount needed for securing. The very beginning of the tape (0 m) marks the planned edge of the liner, meaning that at the pond’s edge, the tape will show the securing allowance (about 100–180 cm).

The ribs must be marked along this spine line. The first rib should be marked at 5.3 meters on the measuring tape.

So:

• The 0 m point (the very beginning of the tape) is placed outside the basin.
• At the edge of the pond, the value shown on the tape corresponds to the securing allowance (e.g. 1.3 m).
• The first rib is marked at 5.3 m, the second at 10.6 m, the third at 15.9 m, then 21.2 m, and so on, in increments of 5.3 m.

Important:
You do not need to mark the start and end points of the measuring tape, as they fall outside the basin.

Tip:
It will be helpful later if you paint markings that are at least 50 cm long, and it is important that these markings are perpendicular to the spine line.

The markings should be straight lines. After removing the measuring tape that represents the spine line, the gap between the markings on both sides will show where the spine line was previously located. If you have two measuring tapes, the process is easier, but the markings are still necessary. It may also happen that the spine line shifts for some reason — markings made in the way described above will help you continue the measurements even in such cases.

Measuring the rib lengths

You need to measure the length of each rib at every point you previously marked (on both sides of the spine line — first on the right side, then on the left side). Do it as follows:

1. Take out your paper and pen and make a sketch to make the process easier. Draw a straight line roughly in the middle of the page — this will be the spine line.
2. Draw as many perpendicular lines (ribs) to the spine line as you previously marked. Start drawing each rib from the spine line and end at the edge of the pond basin. Measure the length of each rib and record your measurements on the sketch.

Important:
During rib measurements, the measuring tape must also follow the terrain of the pond basin. The tape should not be wrinkled, but you don’t need to stretch it perfectly tight either. The liner sheet will also be placed into the basin with small waves and folds.

You can measure up to the very edge of the basin without any extra allowance, but in that case, you must later add the securing allowance or other extras by calculation. If you already know exactly where the edge of the liner will be (for example, if the anchoring trench has already been dug), then include that in the rib length during measurement. If the anchoring trench is not yet in place, then let the tape extend beyond the edge by the expected securing allowance, and record the resulting value.

Tip:
If you write the measured rib lengths directly onto each rib on both sides (e.g. 1A = 3 m, 1B = 4 m), you won’t confuse which value belongs where.

If you only have one measuring tape, and you want to determine the ribs perpendicular to the spine line, you can replace the tape previously used for marking the spine with a longer string, rope, or even a garden hose. Then you can use the freed-up measuring tape to mark the perpendicular ribs. Of course, if you have two measuring tapes, the first one can remain fixed on the spine line.

When it’s worth planning with slightly longer liner dimensions

Here are some tips to keep in mind to make sure the liner is never smaller than needed.

Sometimes it’s necessary to plan with slightly more than the measured lengths because the liner sheet is a flat, spread-out material. First, it has to line a three-dimensional shape with depth. Second, the liner is made from a single piece, so different parts of the basin interact with each other — a section that requires more material can reduce the available liner size from multiple directions.

Compared to the survey, the liner sheet will not settle into the pond basin in a perfectly predictable way, so it’s better to plan with safety margins to avoid unpleasant surprises.

If there is a peninsula or similar protrusion in the basin

In this case, the basin will require some extra material from the direction of the spine line, because the liner must curve up onto the peninsula.

It’s recommended to position the spine line so that the tape curves onto the peninsula while still remaining straight. This way, it covers a longer path, meaning the tape will show a higher value along the spine line.

Additionally, folds will form at the base of the peninsula when placing the liner sheet, so extra material must be provided from above, from the edge of the basin. For a peninsula, add 40–70 cm of extra length to each rib that runs through the peninsula or the protruding section of the basin.

Also, add 40–70 cm to one rib before and one rib after the affected area (neighboring ribs).

If the rib’s measuring tape line ends at a curved shoreline

In this case, the less of a right angle the measuring tape forms with the shoreline, the more liner material will be needed for securing.

Additionally, there is some measurement inaccuracy in the direction of the rib: on such curved sections, the tape can show very different values depending on whether the person reading it shifts slightly to the right or left.

Because of this, for curved shorelines, depending on the curvature and the securing method, add 0.5 to 1.2 meters of extra length to the affected ribs.

To help estimate the amount of extra material needed, always include the securing allowance in the rib length during measurement. It also helps to test how much the tape measurement changes when placed in slightly different positions.

Planning with more material is always safer than risking a shortage during installation just to save a few square meters.

Here is the translation without any formatting:

If the length of two consecutive ribs differs significantly, add a small extra length to the shorter rib: if the difference is over 1 meter, add 0.3 meters; if over 1.5 meters, add 0.5 meters; if over 2 meters, add 0.8 meters.

In case of significant difference, the discrepancy should only be considered on either side A or side B relative to the spine line. Do not add the measurements of sides A and B together.

If the shape of the riverbed is very angular or its deepening is more like steps, increase the length of each rib by 30 to 50 centimeters.

If measurements can only be taken on one side of the spine line, only that side should be considered.

You should only apply the instructions described here if the shape of the lake “bends” and measurements can only be taken on one side of the spine line. In such cases, the required measurement may start farther from the spine line.

If this does not apply to your riverbed, scroll straight to the bottom of the page to view our guidelines for planning and installation.

In this case, the steps are as follows:

You can only measure the rib in one direction from the spine line.
Lay the measuring tape along the rib as usual, then measure the distance between the spine line and the edge of the lakebed that is closer to the spine.

Record this distance on the drawing with a negative sign on the empty side of the spine line (where no ribs need to be measured because there is no lakebed on that side).

The negative value will indicate how far this measurement needs to be shifted relative to the spine.

2. Measure the distance between the two edges of the lake — this will be the length of the rib.

3. Add the extra length for fastening and other material allowances to the end of the rib that is farther from the spine line, either for securing or due to the shape of the lakebed.

4. Add the necessary extra material allowance to the beginning of the rib that is closer to the spine line, in a way that increases the rib length toward the spine, either for fastening or due to the shape of the lakebed.

Important:
Adding the extra length will result in a change to the negative value.

For example, if the negative value was -3.0 meters and you add 1.8 meters of extra material, the negative value changes to -1.2 meters.

This means the rib moves closer to the spine line.

It may also happen that so much extra material needs to be added to the rib that the negative value becomes positive.

In this case, a positive number will appear on both sides of the spine line.
For example, if the value is -3.0 meters and you need to add 1.8 + 2.4 meters (where 1.8 meters is for fastening and 2.4 meters is due to the shape of the lakebed), then the rib will be -3 + 1.8 + 2.4 = 1.2 meters in one direction.

If a positive number appears on the other side of the rib due to the negative value turning positive, then no additional material needs to be added to that side.

Tip:
The spine line is always straight, while the shape of the lake may “bend” away from it. If the difference between the two is large, try marking the spine line along a different path. In that case, start the measurements from the beginning.

From this point on, you’ll only need the recorded values and the geotextile designer at lotusgarden.eu to have your liner layout ready in just a few minutes!

The post Measurement of a custom-shaped pond for geotextile first appeared on Lotus Garden.

The rectangular-shaped geotextile is recommended specifically for building ponds with simple shapes. It can be an ideal choice for contractors, as it can be manufactured in one piece up to 5000 m², but it’s also a suitable option for those building their own garden pond.

All ponds with simple shapes are made using rectangular geotextiles

Designing a rectangular geotextile

During the production of a rectangular-shaped geotextile, foil strips are cut to size and welded together.

The width of each foil strip is always 5.3 meters (the liner size increases in steps of this width). So one dimension of the liner depends on how many foil strips are welded together. For example, if 7 foil strips are needed, the final liner width will be 7 × 5.3 m = 37.1 meters.

The length of the foil strips depends on the size of the pond.

The first step in designing a rectangular geotextile is the on-site survey, where you need to determine the exact length of foil strips required based on the size of your pond.

You must record the data measured during the survey and enter it into the rectangular liner planner calculator, which will generate the calculation for your order based on your measurements.

To get accurate results, you will need the following tools

The surveying process

The survey is very simple and consists of only two steps!

Important:
The measurement should follow the full topography of the basin, so the tape measure must be laid along the line that passes through both the deepest and highest points of the basin.

Both ends of the measuring tape should extend beyond the pond basin, not just from one edge of the pond to the other. The amount of overhang will match the extra length needed for securing. So let both ends of the tape hang out evenly, according to the amount of securing allowance you plan for. Count on at least 50 cm of extra length, but depending on the securing method and soil type, it may need to be more.

Select the longest measurements and use those in the planner. This is important to ensure that every part of the basin will be covered with enough geotextile.

You’re done with the rectangular geotextile survey!

Now you just need to enter the measurements into the designer.

The post Measurement of a rectengular-shaped pond for geotextile first appeared on Lotus Garden.

Don’t worry, we’ll help with the installation too! Watch our video on the topic and read the written guide.

Installation only in three easy steps

1. First, install the geotextile

Place the geotextile at the beginning of the anchoring trench so that the front edge of the sheet aligns with the start of the trench, then begin unrolling it according to the opening directions we’ve marked.

When you reach the point where the basin bottom meets the basin side with the geotextile, stop pulling—don’t fold it up onto the anchoring trench yet.

Fold back enough of the material onto itself to cover the section marked “x m.”

Then grab the edge of the material (at the fold line) and pull it back to the point where the basin bottom meets the side wall.

Finally, unfold the previously folded section onto the anchoring trench.

That completes the first step. You’ve installed the geotextile!

2. Next, you need to install the pond liner

Place the pond liner in the basin at the beginning of the anchoring trench, following the opening directions we’ve marked on the liner.

Start unrolling the pond liner at the beginning of the anchoring trench as well.

Pull the pond liner only up to the side of the basin, don’t fold it up onto the anchoring trench yet.

Fold back enough of the material onto itself to cover the section marked “x m.”

Then grab the edge of the material (at the fold line) and pull it back to the point where the basin bottom meets the side wall.

Finally, unfold the liner onto the anchoring trench.

That means you’ve successfully installed the pond liner too!

Just a bit of adjustment and you’re done!

Firmly press the pond liner into the edge where the basin bottom meets the side wall to ensure the liner doesn’t stretch or pull anywhere.

Check all the edges, and if needed, adjust them by hand. You can also create waves in the liner along the edges to add a bit of extra material.

This is very important because if you fill the basin with water and the liner is stretched anywhere, it could tear under the weight of the water.

3. With that, the installation is complete!

Sit back and enjoy the final result!

The post Installation of a custom-shaped pond first appeared on Lotus Garden.

Don’t worry, we’ll help with the installation too! Read our detailed guide.

Installation only in three easy steps

1. First, install the geotextile

Place the geotextile at the beginning of the anchoring trench so that the front edge of the sheet aligns with the start of the trench, then begin unrolling it according to the opening directions we’ve marked.

When you reach the point where the basin bottom meets the basin side with the geotextile, stop pulling—don’t fold it up onto the anchoring trench yet.

Fold back enough of the material onto itself to cover the section marked “x m.”

Then grab the edge of the material (at the fold line) and pull it back to the point where the basin bottom meets the side wall.

Finally, unfold the previously folded section onto the anchoring trench.

That completes the first step. You’ve installed the geotextile!

2. Next, you need to install the pond liner

Place the pond liner in the basin at the beginning of the anchoring trench, following the opening directions we’ve marked on the liner.

Start unrolling the pond liner at the beginning of the anchoring trench as well.

Pull the pond liner only up to the side of the basin, don’t fold it up onto the anchoring trench yet.

Fold back enough of the material onto itself to cover the section marked “x m.”

Then grab the edge of the material (at the fold line) and pull it back to the point where the basin bottom meets the side wall.

Finally, unfold the liner onto the anchoring trench.

That means you’ve successfully installed the pond liner too!

Just a bit of adjustment and you’re done!

Firmly press the pond liner into the edge where the basin bottom meets the side wall to ensure the liner doesn’t stretch or pull anywhere.

Check all the edges, and if needed, adjust them by hand. You can also create waves in the liner along the edges to add a bit of extra material.

This is very important because if you fill the basin with water and the liner is stretched anywhere, it could tear under the weight of the water.

3. With that, the installation is complete!

Sit back and enjoy the final result!

The post Installation of a rectangular-shaped pond first appeared on Lotus Garden.

Earlier you had to measure the width and length of the pond bed. If you haven’t done this yet, read about the survey process!

The width and length obtained during the survey will be needed in the next steps to learn how to use the rectangular-shaped geotextile planner.

Step 1. Enter the pond liner menu and select the rectangular-shaped pond liner designer

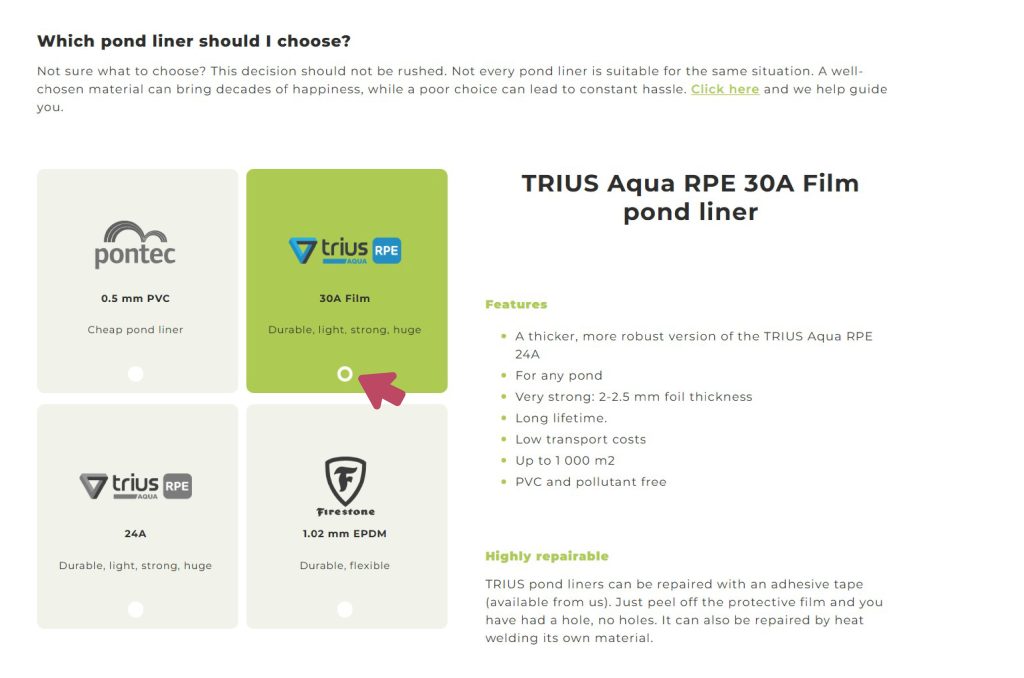

Step 2: Choose from the available pond liners

We help you with descriptions of the features so you can select the one that suits you best.

Step 3: Enter the measured values for the width

Step 4: Enter the measured value for the length as well

Step 5: Click to the calculation button

By clicking the calculation button, you will receive the size of the pond liner we can manufacture based on your parameters.

You will also see how much the pond liner will cost.

Important:
We can’t always manufacture the exact requested size!

If we can’t produce the liner in the exact requested size because the roll width doesn’t allow it, we will always manufacture and deliver the liner in the closest possible size.

After that, all you need to do is add the product to your cart, and within a few days, the custom-sized pond liner can be at your place!

The post Rectangular pond designer first appeared on Lotus Garden.

Earlier, you had to measure the width and length of the pond bed. If you haven’t done that yet, read about how the survey works!

You’ll need the width and length you obtained during the survey to learn how to use the rectangular geotextile designer in the next steps.

Step 1: Go to the pond liner menu and select the custom-shaped pond liner designer

Step 2: Choose from the available pond liners

We’ll help you with descriptions of the features so you can select the one that suits you best.

Step 3: Enter the measured lengths into the designer

Now, enter the rib lengths you previously wrote down on paper into the designer, one by one, in the appropriate places.

Tip:
By pressing the TAB key, you can go through and enter all the values in order.

Enter the rib length labeled 1A from your paper into the designer.

Enter the rib length labeled 1B from your paper into the designer.

Click the + button to add the next liner strip to the designer

Enter the rib length labeled 2A from your paper into the designer.

Enter the rib length labeled 2B from your paper into the designer.

Continue entering the values this way until all rib lengths have been added to the designer.

It’s possible that you’ll see one more liner strip in the preview than the number you entered — but that’s okay!

It’s important to know that the number pairs you enter don’t determine the length of each strip, because the calculator/designer will calculate that based on the upper and lower values! In fact, during the survey, the number pairs represent the measurements taken along the welding joints.

That’s why there will be one more strip than the number of pairs you entered.

Important:
If you enter a negative value for one of the measurements, the measurement will shift that much in the opposite direction from the spine. For example, if you enter -1 for 6A, then the 6B measurement will start 1 meter lower from the spine.

This will be important for pond shapes where measurements can only be taken on one side of the spine line.

Enter the value for 6B in the usual way.

Next, enter a negative value again — this time for 7A.

Enter the value for 7B in the usual way.

If all measurements have been entered, by clicking the Calculate button you’ll see how much the planned pond liner will cost.

By clicking the Preview button, you’ll also see what your pond liner will look like, and you’ll notice that the two liner strips entered with negative values are shifted from the spine line.

You can also save the finished design for yourself.

It may also happen here that you’ll see one more liner strip in the preview than the number you entered — but that’s okay!

It’s important to know that the number pairs you enter don’t determine the length of each strip, because the calculator/designer will calculate that based on the upper and lower values! In fact, during the survey, the number pairs represent the measurements taken along the welding joints.

That’s why there will be one more strip than the number of pairs you entered.

After that, all you need to do is add the product to your cart, and within a few days, your custom-made, perfectly sized pond liner could be at your doorstep!

The post Custom-shaped pond designer first appeared on Lotus Garden.

Earlier, you had to measure the width and length of the pond bed. If you haven’t done that yet, read the guide and watch the video to see how the survey works!

You’ll need the width and length you obtained during the survey to learn how to use the rectangular geotextile designer in the next steps.

Step 1: Go to the geotextile menu and select the custom-shaped geotextile designer

Step 2: Choose from the available geotextiles

We’ll help you with descriptions of the features so you can select the one that suits you best.

Step 3: Enter the measured lengths into the designer

Now, enter the rib lengths you previously wrote down on paper into the designer, one by one, in the appropriate places.

Tip:
By pressing the TAB key, you can go through and enter all the values in order.

Enter the rib length labeled 1A from your paper into the designer.

Enter the rib length labeled 1B from your paper into the designer.

Click the + button to add the next geotextile strip to the designer

Enter the rib length labeled 2A from your paper into the designer.

Enter the rib length labeled 2B from your paper into the designer.

Continue entering the values this way until all rib lengths have been added to the designer.

By clicking the Calculate button, you’ll see how much the planned geotextile will cost.

By clicking the Preview button, you can also see what your geotextile will look like.

You can even save the finished design for yourself.

It’s possible that you’ll see one more geotextile strip in the preview than the number you entered — but that’s okay!

It’s important to know that the number pairs you enter don’t determine the length of each strip, because the calculator/designer will calculate that based on the upper and lower values! In fact, during the survey, the number pairs represent the measurements taken along the welding joints.

That’s why there will be one more strip than the number of pairs you entered.

Important:
If you enter a negative value for one of the measurements, the measurement will shift that much in the opposite direction from the spine. For example, if you enter -1 for 6A, then the 6B measurement will start 1 meter lower from the spine.

This will be important for pond shapes where measurements can only be taken on one side of the spine line.

Step 1: Enter the values into the designer as shown above

Then enter the negative value — in this example, for 6A.

Enter the value for 6B in the usual way.

Next, enter a negative value again — this time for 7A.

Enter the value for 7B in the usual way.

If all measurements have been entered, by clicking the Calculate button you’ll see how much the planned geotextile will cost.

By clicking the Preview button, you’ll also see what your geotextile will look like, and you’ll notice that the two geotextile strips entered with negative values are shifted from the spine line.

You can also save the finished design for yourself.

It may also happen here that you’ll see one more geotextile strip in the preview than the number you entered — but that’s okay!

It’s important to know that the number pairs you enter don’t determine the length of each strip, because the calculator/designer will calculate that based on the upper and lower values! In fact, during the survey, the number pairs represent the measurements taken along the welding joints.

That’s why there will be one more strip than the number of pairs you entered.

After that, all you need to do is add the product to your cart, and within a few days, your custom-made, perfectly sized geotextile could be at your doorstep!

The post Custom-shaped geotextile designer first appeared on Lotus Garden.
